Essential Guide: Understanding the Components of Your Solar Power Plant

Published on
June 10, 2024
Author
Subscribe to newsletter
By subscribing you agree to with our Privacy Policy.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Share this post

A solar power plant runs smoothly when all components are working properly. An ideal solar power plant is safe, has minimal downtime, delivers high performance, and lasts its intended lifetime of 25 years. While solar panels make up the largest and most important part of the solar power plant, a combination of equipment and devices is needed to make a solar plant fully functional. Let's explore the various components of a solar power plant and why they are necessary.

Solar Panels: How Solar Panels Work?

When sunlight falls on the solar panel, the cells absorb the light and convert it into electricity through the Photo-Voltaic effect. Thus, a Solar PV Plant converts solar radiation into electricity. The output of the solar panel varies depending on the time of day and the available radiation, peaking at noon and declining until sunset.

Types of Solar Panels - First Generation Solar Cells

First-generation solar cells, primarily based on crystalline silicon technology, represent the most established and widely used technology in the solar industry. These cells are known for their high efficiency, durability, and extensive use in both residential and commercial solar power systems. Here’s a detailed look at the structure, types, and subtypes of first-generation solar cells.

A breakdown of the different types of crystalline solar cells

Crystalline Silicon Solar Cells

Crystalline silicon solar cells are divided into two main categories: Monocrystalline and Multicrystalline.

1. Monocrystalline Solar Cells

Known for their high efficiency and longevity, monocrystalline panels are made from single-crystal silicon. They typically have efficiencies ranging from 18% to 23% and can go higher in some cases.

a. Full Cut Cells:

Full cut cells refer to the traditional design where the entire silicon wafer is used to form the cell. These cells are not physically altered or cut. Commonly used in a wide range of solar panels due to their straightforward manufacturing process and reliable performance.

b. Half Cut Cells:

These cells are cut into halves to reduce electrical resistance and increase efficiency. By cutting the cells, the electrical current is divided, leading to lower resistive losses and improved performance. They provide enhanced performance,better shade tolerance, and higher power output.

Subtypes of Half Cut Cells:

1. P-Type:

a.PERC(Passivated Emitter Rear Cell): This technology involves adding a passivation layer to the rear side of the cell to improve efficiency by reducing electron recombination. PERC cells are known for their high efficiency and improved low-light performance.

b. Normal:

Standard P-type cells without additional passivation layers. These cells are simpler and cheaper to manufacture but offer lower efficiency compared to PERC cells.

2. N-Type:

a. PERC:

Similar to P-type PERC but uses N-type silicon, which provides better performance, longer lifespan, and is less prone to degradation (like light-induced degradation).

b. TopCON(Tunnel Oxide Passivated Contact):

This advanced technology uses a thin tunneling oxide layer between the silicon wafer and the metal contacts. This structure improves passivation and reduces recombination, resulting in higher efficiency.

c. HJT(Heterojunction Technology):

Combines crystalline silicon with thin layers of amorphous silicon. This combination improves efficiency and performance,especially at higher temperatures. HJT cells are known for their high efficiency and excellent thermal stability.

2.    Multicrystalline Solar Cells

Also known as multicrystalline silicon, these panels are made from silicon crystals melted together. They are less efficient than monocrystalline panels, with efficiencies generally ranging from 15% to 18%​. They are more cost-effective but require more space to generate the same amount of electricity as monocrystalline panels.

PERC: Similar to monocrystalline cells, multicrystalline cells can also be enhanced with PERC technology. This involves adding a passivation layer to improve efficiency by reducing electron recombination at the rear surface.

3. Technological Comparisons

· Efficiency: Monocrystalline cells typically offer higher efficiencies compared to multicrystalline cells. Within monocrystalline cells, half cut and advanced technologies like PERC, TopCON, and HJT provide additional efficiency gains.

 · Cost: Multicrystalline cells are generally cheaper to manufacture, making them a cost-effective option for large-scale installations. However, the lower efficiency of multicrystalline cells means that more panels may be needed to achieve the same power output as monocrystalline panels.

·  Performance in Different Conditions: Monocrystalline cells, especially those with advanced technologies like HJT, perform better in low-light conditions and have better temperature coefficients. This means they lose less efficiency at higher temperatures compared to multicrystalline cells.

Types of Solar Panels - Second Generation Solar Cells

Second-generation solar cells, also known as thin-film solar cells, represent an evolution from the traditional crystalline silicon technology used in first-generation solar cells. Thin-film technologies aim to reduce material costs and improve flexibility, potentially enabling a broader range of applications. These solar cells are characterized using very thin layers of semiconductor materials,which can be deposited on various substrates including glass, plastic, andmetal. The main types of second-generation solar cells include Cadmium Telluride (CdTe), Amorphous Silicon (a-Si), and Copper Indium Gallium Selenide(CIGS).

Thin-Film Solar Cells

1. Cadmium Telluride (CdTe) Solar Cells

CdTe panels are the most common type of thin-film technology, with efficiencies around 10% to 15%. They are cheaper to produce but involve the use of toxic cadmium, necessitating careful handling and disposal.

    · Advantages:

       · High absorption coefficient allows for a thinner layer to capture sunlight efficiently.

       · Lower production costs compared to crystalline silicon cells.

       · Good performance in low-light and high-temperature conditions.

   · Disadvantages:

       · Use of toxic materials like cadmium requires careful handling and disposal.

       · Lower efficiency compared to some other thin-film technologies.

2. Amorphous Silicon (a-Si) Solar Cells

Amorphous silicon panels use a non-crystalline form of silicon and are less efficient,typically around 6% to 12%​​. They are flexible, lightweight, and cost-effective, making them suitable for smaller applications like portable solar chargers.

     ·  Advantages:

         ·Low material cost and reduced silicon usage compared to crystalline silicon cells.

         · Flexibility and lightweight make them suitable for applications like building-integrated photovoltaics (BIPV) and portable solar devices.

         · Better performance in low-light conditions.

     · Disadvantages:

         · Lower efficiency compared to crystalline silicon and other thin-film technologies.

         · Degradation over time, which can affect long-term performance.

3. Copper Indium Gallium Selenide (CIGS) Solar Cells

CIGS panels offer efficiencies like traditional silicon panels, reaching up to 22.4%in laboratory settings​. These panels are flexible and have a better performance in high temperatures compared to other types.

     · Advantages:

         · High efficiency among thin-film technologies, with potential laboratory efficiencies exceeding  20%.

          · Flexible and can be deposited on flexible substrates, making them suitable for a variety of applications.

          · Good performance in low-light and partial shading conditions.

     · Disadvantages:

         · Complex manufacturing process can lead to higher production costs.

         · Availability of indium and gallium, which are relatively rare materials, can be a concern for large-scale production.

Technological Comparisons

· Efficiency:

CIGS cells typically offer the highest efficiencies among thin-film technologies, followed by CdTe and then amorphous silicon. However, all thin-film technologies generally have lower efficiencies compared to first-generation   crystalline   silicon cells.

· Cost:

Thin-film technologies generally offer lower production costs due to reduced material usage and simpler manufacturing processes. CdTe cells are often the most cost-effective, followed by a-Si and CIGS.

· Applications:

Thin-film solar cells are versatile and can be used in a variety of applications. Their flexibility and lightweight make them suitable for portable solar devices, building-integrated photovoltaics, and other innovative applications   where    traditional rigid panels would not be feasible.

Find top-quality solar panels on Aerem's SunStore.

Importance of Choosing the Right Solar Panel

Choosing the right type of solar panel is crucial for several reasons:

· Efficiency and Performance:

Higher efficiency panels generate more electricity from the same amount of sunlight, improving the overall performance of the solar power plant.

· Space Constraints:

In many cases, especially in residential installations, space is limited. Higher capacity panels (like monocrystalline)are preferable as they generate more power per unit area, reducing the number of panels needed.

· Cost:

While thin-film panels are cheaper to install and manufacture, they require mores pace and have lower efficiency, potentially leading to higher long-term costs due to more frequent replacements and larger installations.

Inverter: Choosing the Best Inverter for Your Solar Power System

Inverter sare a crucial component of solar power systems, responsible for converting the direct current (DC) electricity generated by solar panels into alternating current (AC) electricity, which is used by most household and commercial appliances.

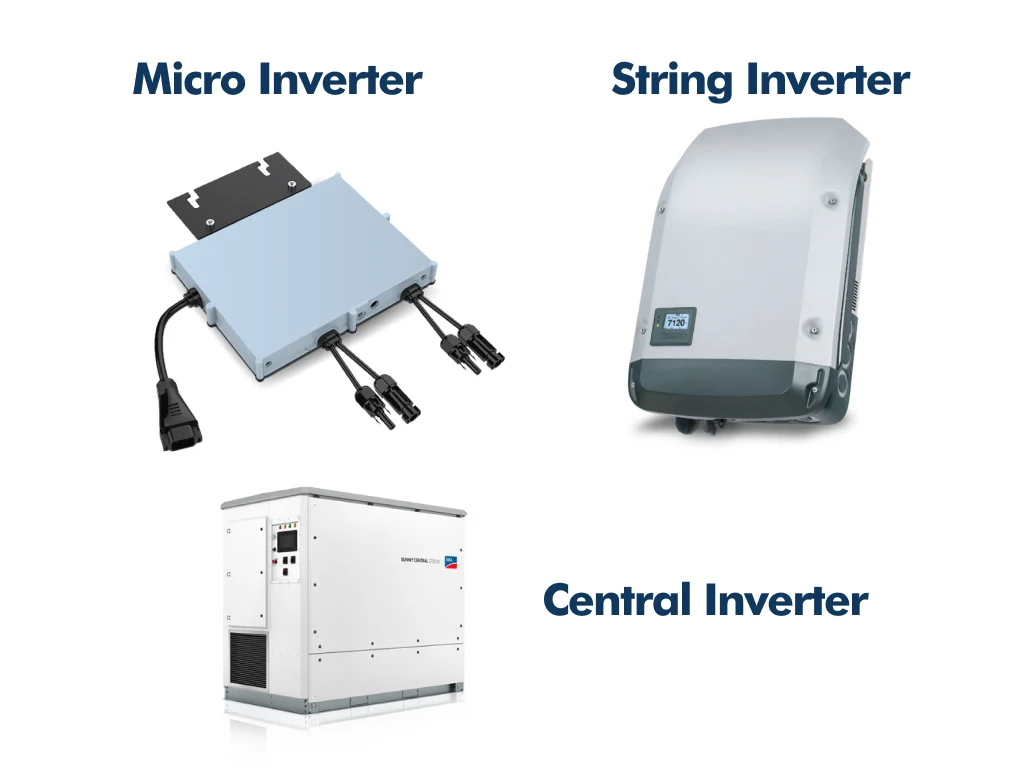

Types of Inverters

1. String Inverters:

These are the most common type used in residential and small commercial installations. A single string inverter connects to a series (or string) of solar panels, converting the DC power from all the panels into AC power.   String inverters are   typically installed in a central location and can handle power capacities ranging from 1 kW to 500kW​.

2. Microinverters:

Unlike string inverters, microinverters are installed on each solar panel. They convert DC to AC at the panel level, optimizing the performance of each individual panel. This setup is particularly useful for installations   whereshading or   different orientations affect the panels differently. Microinverters improve system efficiency and provide panel-level monitoring but are generally more expensive than string inverters​

3. Central Inverters:

These are used in large-scale solar installations,such as utility-scale solar farms. Central inverters handle much larger power capacities, often in the range of several megawatts (MW). They function similarly to string   inverters but on a   much larger scale, managing power from hundreds or thousands of panels​​.

Monitor your solar plant performance with AeROC.

Key Features of Inverters

· Maximum Power Point Tracking (MPPT):

MPPT technology is integral to modern inverters. It continuously monitors the voltage and current output of the solar panels to ensure they operate at their optimal power point. This is especially important in systems where shading, dirt, or   panel orientation affects performance. Multi-MPPT inverters can handle multiple strings of panels with different orientations or conditions, optimizing the output of each string separately​

· Efficiency:

Inverter efficiency is a critical factor in the overall performance of a solar power system. Most modern inverters have efficiency ratings above 95%, with some high-end models exceeding 98%. Higher efficiency means less energy is los tin   the conversion process, maximizing the usable power generated by the solar panels

· Grid-Tied vs. Off-Grid Inverters:

Grid-tied inverters are designed to work in systems connected to the utility grid. They synchronize the phase and frequency of the AC output to match the grid, allowing excess power to be fed back to the grid.Off-grid inverters, on the   other hand, are used in standalone systems not connected to the utility grid. They often include battery storage to provide power when solar generation is insufficient​

· Monitoring and Communication:

Modern inverters often come with built-in monitoring and communication capabilities. They can connect to Wi-Fi or cellular networks to provide real-time data on system performance. This allows users to monitor their solar power system   remotely via web portals or mobile apps, enabling proactive maintenance and performance optimization​

Considerations for Choosing an Inverter

· System Size:

The size of the solar power system largely determines the type of inverter needed.For small residential systems, string inverters or microinverters are typically sufficient. Larger commercial or utility-scale systems may require central     inverters.

· Panel Configuration:

The layout and orientation of solar panels can influence the choice of inverter.Systems with panels facing different directions or experiencing partial shading might benefit from microinverters or string inverters with multiple MPPT     channels.

· Budget:

Cost is always a factor. While microinverters offer superior performance and monitoring capabilities, they come at a higher price. String inverters are a more cost-effective solution for many residential and commercial installations.

Understanding these aspects of inverters helps ensure that your solar power system operates efficiently and reliably, maximizing the return on your investment in solar technology​​.

Distribution Boxes:The Importance of Distribution Boxes in Solar Power Systems

Distribution boxes are vital components of solar power systems, providing a central point for electrical connections and enhancing system safety. They play a crucial role in both residential and commercial solar installations.

 representational images for ACDB and DCDB

Types of Distribution Boxes

1. DC Distribution Box (DCDB):

    The DCDB collects direct current(DC) from solar panels and safely routes it to the inverter. It typically includes fuses, circuit breakers, and surge protection devices to protect the solar array from faults and lightning strikes. Essential     components include fuses to prevent overcurrent, isolators to disconnect the circuit for maintenance, and surge protection devices to guard against voltage spikes​.

2. AC Distribution Box (ACDB):

    The ACDB manages the alternating current (AC) output from the inverter, distributing it to the household or commercial electrical network. It also ensures that the power supplied is safe and stable. ACDB typically houses circuit breakers,     residual current circuit breakers (RCCB), and surge protection devices. These components protect the system from overloads, short circuits, and electrical surges​.

Safety features of a Distribution Box

· Circuit Breakers:

Automatically disconnect the circuit in case of overcurrent or short circuits, preventing potential damage to the system and reducing fire risk.

· Surge Protection Devices:

Protect against transient voltage spikes, which can damage sensitive electronic components in the inverter and other connected devices.

· Isolators:

Allow safe disconnection of the solar array or inverter for maintenance purposes, ensuring the safety of maintenance personnel​.

Importance of Distribution Boxes

· Centralized Control:

Distribution boxes provide a centralized point for managing and controlling the electrical flow within a solar power system. This simplifies system design and maintenance.

· Enhanced Safety:

By incorporating multiple protective devices, distribution boxes ensure the safe operation of solar power systems, protecting both equipment and personnel.

· System Reliability:

Properly configured distribution boxes enhance the overall reliability of the solar power system by preventing faults and ensuring consistent power delivery​.

Considerations for Choosing a Distribution Box

· System Size and Complexity:

The size and complexity of the solar power system will determine the type and capacity of the distribution box needed. Larger systems require more advanced distribution boxes with higher capacity and more protective features.

· Environmental Conditions:

The distribution box should be suitable for the environmental conditions of the installation site. This includes protection against moisture, dust, and extreme temperatures.

· Compliance with Standards:

Ensure that the distribution box complies with relevant electrical standards and regulations, which is crucial for safety and insurance purposes​.

Understanding these aspects of distribution boxes ensures that your solar power system operates safely and efficiently, maximizing performance and longevity.

Cables: Selecting the Right Cables for Your Solar Power Installation

Cables area fundamental component of solar power systems, responsible for transmitting the electricity generated by solar panels to various system components.Ensuring proper selection and installation of cables is crucial for the safety,efficiency, and longevity of a solar power system.

Cables used in a solar power plant

Here are the key aspects to understand about solar power cables:

Different Types of Cables in Solar Power Systems

1. DC Cables:

     ·  Function:

         Carry direct current (DC) electricity from the solar panels to the inverter or DC combiner box.

     ·  Specifications:

         Typically, DC cables are rated for high voltage and are designed to withstand outdoor conditions. They are often double-insulated to protect against environmental factors such as UV radiation, moisture, and temperature          variations​

     ·  Common Size:

        DC cables are commonly available in sizes ranging from 4 sqmm to 10 sqmm, with larger sizes used for higher power installations to reduce voltage drop and power loss​​.

2. AC Cables:

     ·  Function:

        Carry alternating current (AC) electricity from the inverter to the AC distribution board (ACDB) and ultimately to the main power supply of the establishment.

     ·  Specifications:

        AC cables are designed to handle the high current and voltage typical of AC power. They are  often armoured to provide additional protection against mechanical damage and environmental factors.

     ·  Common Types:

         Depending on the system, AC cables can be single-phase or three-phase, with three-phase cables being used in larger commercial installations​.

How to Choose Cables for Solar Power Plants?

· Insulation and Sheathing:

DC and AC cables used in solar power systems must have high-quality insulation to prevent electrical leaks and short circuits. Materials like cross-linked polyethylene (XLPE) and polyvinylchloride (PVC) are commonly used for insulation due to their durability and electrical properties​.

Sheathing provides an additional layer of protection. Armored cables, which have a metal sheath, offer enhanced protection against physical damage and are suitable for outdoor and industrial environments​.

· UV Resistance:

Cables exposed to sunlight need to be UV resistant to prevent degradation over time. UV-resistant materials ensure the longevity and reliability of the cables in outdoor installations​.

· Flexibility and Durability:

Flexible cables are easier to install and manage,especially in complex installations with multiple bends and routes. Durability is crucial for maintaining performance over the system's lifespan, which can be25 years or more​.

Considerations for Cable Selection

· System Voltage and Current:

The voltage and current ratings of the system determine the appropriate size and type of cables. Using undersized cables can lead to excessive voltage drop and energy loss, while oversized cables can be unnecessarily costly.

· Environmental Conditions:

Cables must be selected based on the installation environment. For example, cables used in rooftop installations should be UV resistant and able to withstand high temperatures, while those used in underground installations should be moisture resistant and rugged​.

· Compliance and Standards:

Cables should comply with relevant standards and regulations to ensure safety and reliability. International standards like IEC 62930 for PV cables and national standards should be adhered to​​.

Cable Installation Best Practices

· Proper Routing:

Cables should be routed in a manner that minimizes exposure to physical damage and environmental hazards.Using cable trays, conduits, and proper supports helps protect cables and maintain a tidy installation​​.

· Connection and Termination:

Proper termination and connection techniques are vital to prevent loose connections, which can cause overheating and failures. Using appropriate connectors and ensuring secure, corrosion-free connections is essential​​.

· Regular Inspection and Maintenance:

Periodic inspection of cables for signs of wear, damage, or degradation ensures ongoing system reliability. Maintenance practices should include checking for loose connections, inspecting insulation integrity, and ensuring that protective sheathing remains intact​.

By understanding these aspects of solar power cables, you can ensure that your solar power system is safe, efficient, and reliable, contributing to the overall success and longevity of your solar installation​. For more tips on improving solar efficiency, visit our blog.

Metering:Understanding Solar Power System Metering

Metering is a critical component of solar power systems, essential for monitoring energy production and consumption. Accurate metering helps ensure that the system operates efficiently and that users can track performance and savings.

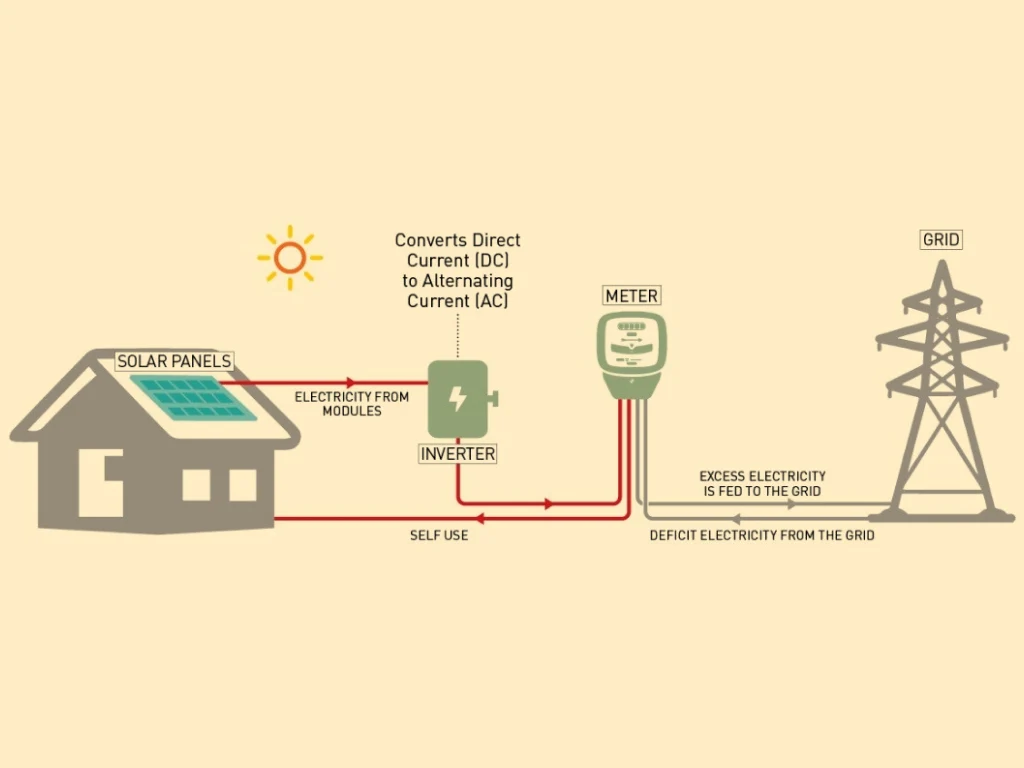

A representational image of Net Metering

Here are the key aspects of metering in solar power systems:

Types of Meters

1. Generation Meters:

These meters measure the total amount of electricity generated by the solar power system. They are typically installed between theinverter and the distribution board. Generation meters provide real-time dataon how much solar  power is being produced, which is crucial for performance monitoring and maintenance​.

2. Net Meters:

Net meters are bi-directional meters that  measure the difference between the electricity generated by the solar power system and the electricity consumed by the user from the grid. When the solar power system generates more electricity than is consumed, the excess is fed back into the grid. Conversely, when the system generates less, the shortfall is drawn from the grid. The net meterrecords both these transactions, providing a net energy usage figure​.  Net metering policies and regulations vary by region, and understanding these is crucial for maximizing the financial benefits of a solar power system.

Essential Features of a Meter

· Accuracy:

High accuracy in metering is essential to ensure that energy production and consumption are correctly recorded. This impacts billing, system efficiency analysis, and overall financial returns on the solar power investment. Modern digital meters offer higher accuracy compared to older analog meters​.

· Real-Time Monitoring:

Advanced metering systems provide real-time data on solar power generation and consumption. This helps users monitor system performance and identify any issues promptly. Real-time monitoring can be accessed via web portals or mobile applications, providing convenience, and enhancing user engagement with the solar power system.

· Data Logging:

Meters often come with data logging capabilities, storing historical data on energy production and consumption. This data is valuable for analysing long-term performance trends and planning maintenance activities. Data logs can also be used for reporting and compliance purposes, especially in commercial and utility-scale installations​​.

· Communication Protocols:

Modern meters are equipped with various communication protocols (e.g., Wi-Fi, Zigbee, GSM) to facilitate remote monitoring and data transmission. These communication features enable seamless integration with energy management systems and other smart home technologies,enhancing overall energy efficiency and management​​.

Considerations While Choosing a Meter

· System Size:

The size of the solar power system influences the type and capacity of the meter required. Larger systems might need more advanced metering solutions with higher data resolution and storage capabilities.

· Regulatory Compliance:

Different region shave specific regulations and standards for metering. Ensuring compliance with local guidelines is essential for legal and financial reasons.

· Integration with Other Systems:

The meter should be compatible with other components of the solar power system and any existing energy management systems. This ensures seamless data flow and comprehensive system monitoring.

· Budget:

While advanced metering systems with real-time monitoring and data logging offer significant benefits, they also come at a higher cost. It’s important to balance features and budget to choose the most suitable meter for your needs.

Understanding these aspects of metering helps in selecting the right meters for your solar power system, ensuring accurate tracking of energy production and consumption,and maximizing the benefits of your solar investment​.

Remote Monitoring System for Solar Power Plants

A remote monitoring system is an integral part of modern solar power installations,providing real-time data and performance analytics that help ensure the system operates efficiently and effectively.

Here's a detailed look at the key aspects of remote monitoring systems for solar power plants:

Key Components of Remote Monitoring Systems

· Data Logger:

The data logger is the central component of the remote monitoring system. It collects data from various sensors and inverters, recording information on electricity production, system performance, and environmental conditions​. Modern data loggers are equipped with internet connectivity (Wi-Fi, Ethernet,or cellular), allowing them to transmit data to a central server or cloud-based platform​.

· Sensors:

Common sensors include temperature sensors, irradiance sensors (measuring solar radiation), and sometimes wind speed sensors. These provide context for the performance data, helping to diagnose issues related to environmental conditions​​. Sensors are typically placed in strategic locations, such as on the solar panels themselves or nearby structures, to ensure accurate and relevant data collection.​.

Essential Capabilities needed in a Remote Monitoring System

· Real-Time Monitoring:

     · Data Access:

        Users can access real-time data through web portals or mobile apps, allowing for immediate  insight into the system’s performance. This includes current power output, cumulative energy production, and efficiency metrics​.

     · Alerts and Notifications:

       The system can send alerts and notifications for various conditions, such as faults, performance drops, or maintenance needs, enabling prompt response to any issues​​.

· Performance Analytics:

     · Historical Data:

      Remote monitoring systems provide access to historical performance data,allowing users to  track the system's performance over time. This data can be critical for identifying trends, understanding seasonal variations, andplanning        maintenance​.

     · Comparative Analysis:

       Some systems offer comparative analysis tools that benchmark the system’s performance against similar installations, helping to identify areas for improvement​.

· Maintenance and Troubleshooting:

     · Preventive Maintenance:

       By monitoring system performance and environmental conditions, remote monitoring systems help identify potential issues before they become serious problems. This proactive approach can        significantly reduce downtime and        maintenance costs.

     · Fault Diagnosis:

       Detailed performance data and analytics help quickly diagnose and locatefaults, whether they are due to shading, soiling, equipment failure, or other issues. This enables faster and more accurate troubleshooting​​.

Benefits of Remote Monitoring Systems

· Increased Efficiency:

   Continuous monitoring and real-time data help optimize the system’s performance, ensuring maximum energy production and efficiency​.

· Cost Savings:

   Early detection of issues and preventive maintenance can significantly reduce operational costs by avoiding major repairs and downtime.​

· Enhanced Reliability:

   Reliable data and analytics improve the overall reliability of the solar power system, ensuring consistent and predictable energy production​.

· User Convenience:

   Remote access to system data through user-friendly interfaces makes it easy for users to monitor and manage their solar power systems from anywhere, at any time​.

Considerations for Choosing a Remote Monitoring System

· Compatibility:

    Ensure that the monitoring system is compatible with your solar power equipment, including inverters and sensors.

· Scalability:

    Choose a system that can scale with your solar installation, accommodating additional panels or inverters as your system grows.

· Data Security:

   Verify that the system employs robust data security measures to protect sensitive performance  data and user information.

· User Interface:

   Opt for a system with a user-friendly interface that provides clear, accessible data and analytics.

Remote monitoring systems are a vital component of modern solar power installations,providing the tools needed to maximize efficiency, reduce costs, and ensure reliable operation. By understanding these systems, users can make informed decisions to optimize their solar energy investments.

While these were the major components of the solar power plant, there are other components like panel or module mounting structures, safety lines, walkways,ladders, cleaning system, skylight covers, and even small items like lugs,cable ties, screws, bolts that make a complete solar plant.

So, this was an overview of the components of a solar plant, especially rooftop plants. There will be customizations to every plant depending on the location, requirement, and type of roof, but this article gives you a general idea before you plan a solar plant for your roof.

Ready to begin your solar Journey? Explore financing options for your solar plant with Aerem's Solar Financing.

Blog

Our latest blogs

Residential

Understanding Solar Loan Interest Rates: Reducing vs. Flat

Understanding the difference between flat and reducing interest rates can have a substantial impact on your financial decisions. By choosing the right ...
Businesses

Reducing Scope 2 Emissions Made Easy With Rooftops Solar

With the rising temperatures and effects of climate change, it has become more and more apparent for companies to measure and reduce their emissions. Reducing emissions...
Businesses

Boost Solar Efficiency: Optimize PR & CUF for Peak Performance

Unlock the full potential of your solar installations with our expert guide on improving Performance Ratio (PR) and Capacity Utilization Factor (CUF). Discover actionable strategies for maximizing solar energy efficiency today.

Realise your solar potential with Aerem

We understand the unique challenges that India faces when it comes to adopting solar. Our platform is tailored to propel your business with the power of solar, setting the stage for unparalleled growth. Dive into tools, financing and SaaS systems that echo your ambitions
